Manholes

Manholes

  • All dimensions are in centimeter unless otherwise indicated
  • Internal surfaces shall be protected with a coat of coal tar epoxy if requested (min. thickness 0.6mm)
  • Surfaces shall be protected with bitumen upon request

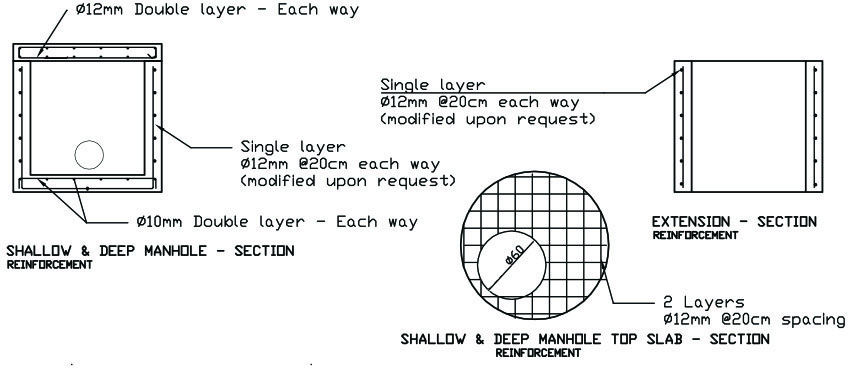

  • Steel reinforcement can be modified upon request
  • Concrete strength is 35 MPA. Incrementation of strength is available upon request

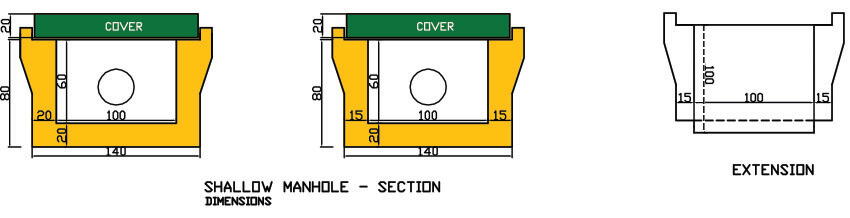

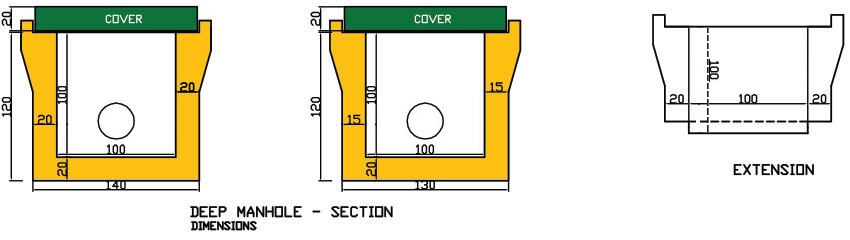

Manholes Diameter 100cm (Size of openings (inlet/outlet) as request)

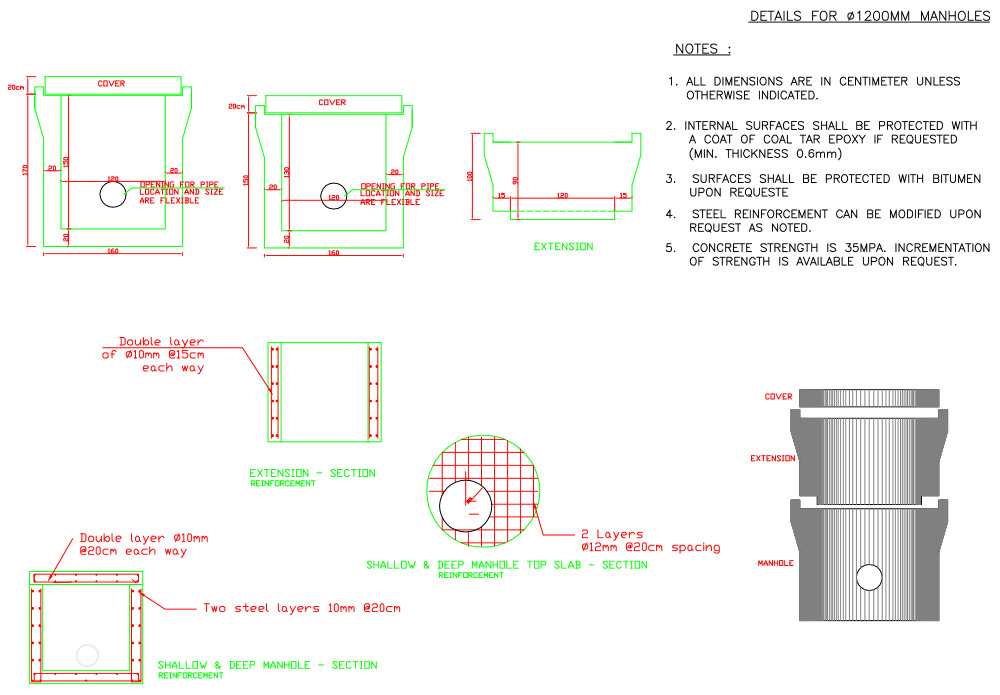

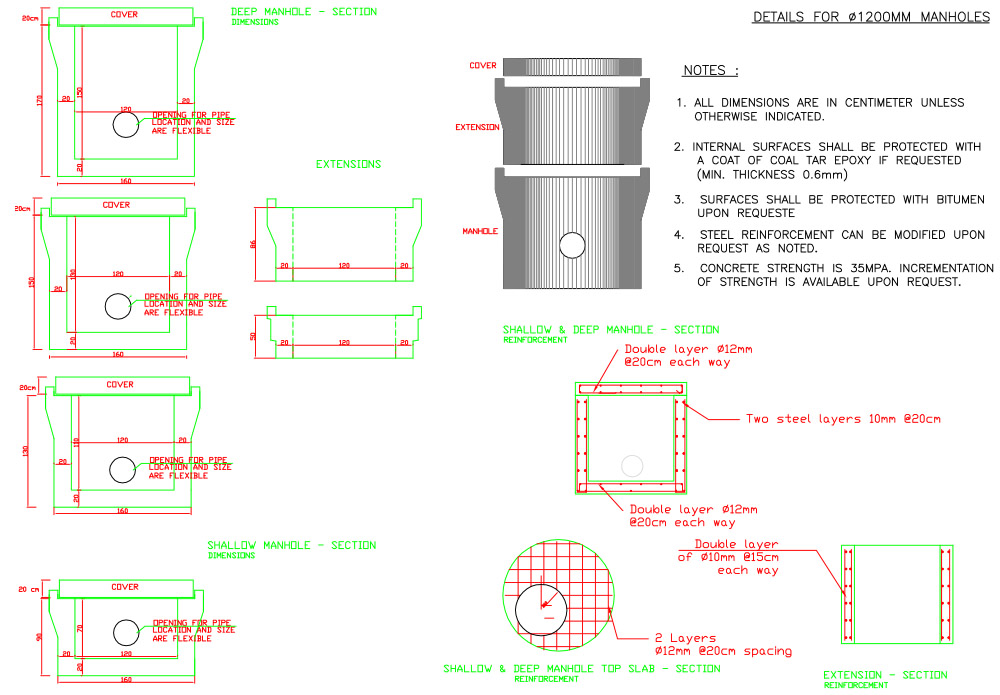

Manholes Diameter 120cm (Size of openings (inlet/outlet) as request)

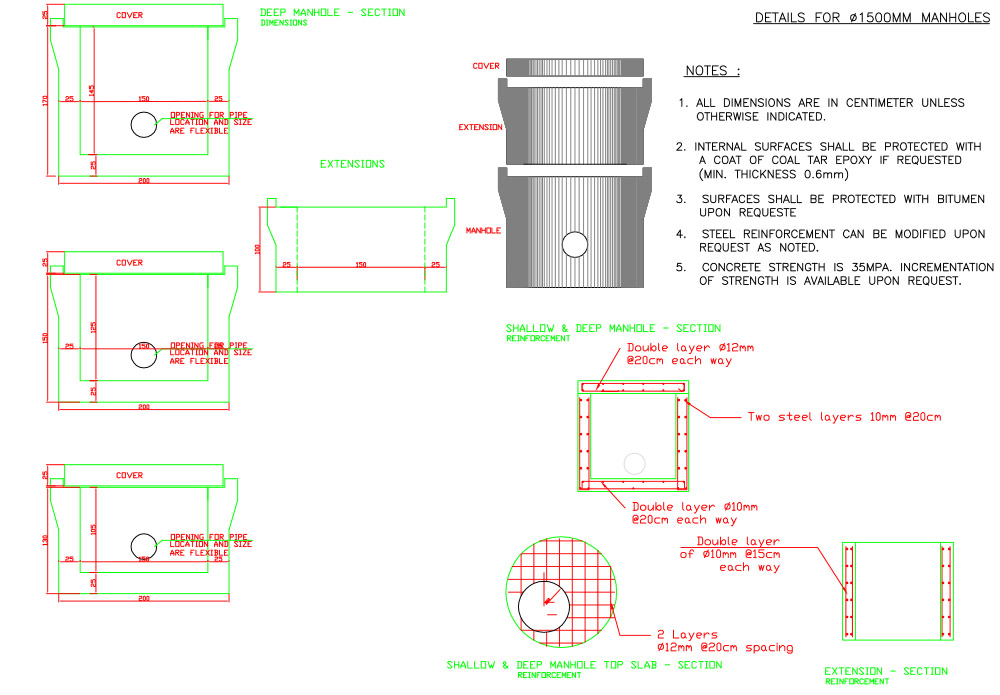

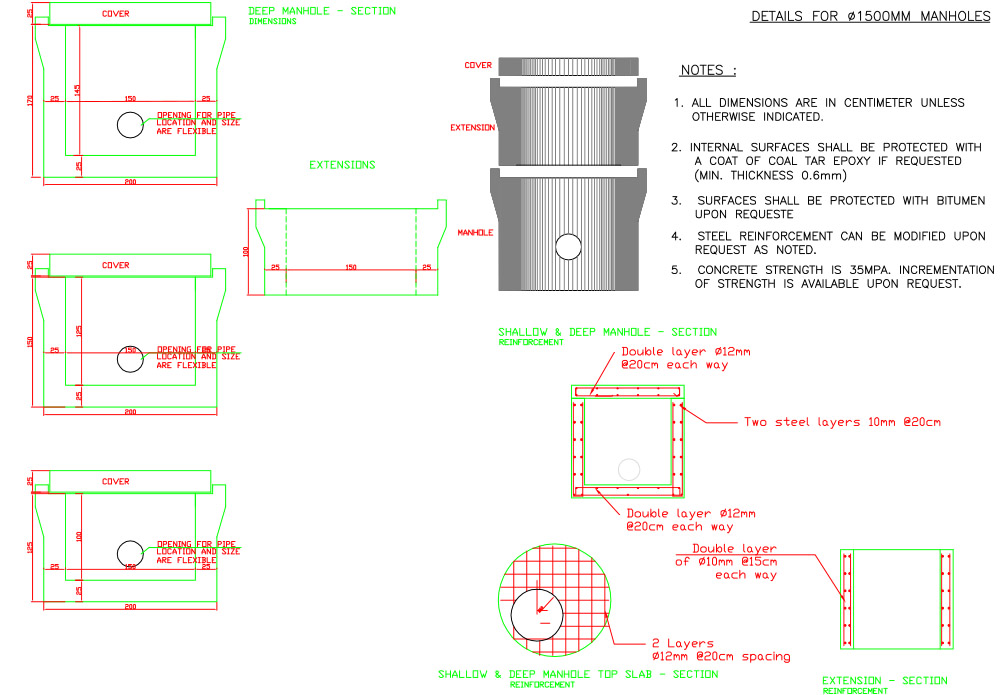

Manholes Diameter 150cm (Size of openings (inlet/outlet) as request)
